I wanted to publish one more article for the sake of celebrating the end of the year 2014. This time I am opening one possible solution for producing multi-threaded correlated random numbers with Gaussian Copula in C#. The numerical scheme used for this procedure has already been opened well enough in this blog posting. Usually, programs presented in this blog have been having (more or less) something to do with Microsoft Excel. This time, there is only C# program. However, with all the example programs presented in this blog, the user should be able to interface this program back to Excel in many different ways, if so desired.
In this simple example program, Producer-Consumer Pattern has been used. CopulaQueue class is nothing more, than just a wrapper for thread-safe ConcurrentQueue data structure. More specifically, the part of the program which actually creates all correlated random numbers into CopulaQueue, is the Producer. In the program, concrete CopulaEngine implementation class takes concrete RandomGenerator implementation class and correlation matrix as its input parameters. Concrete CopulaEngine implementation class then creates correlated random numbers and uses C# Event for sending created random number matrices to CopulaQueue. Another part of the program is the Consumer. Here, I have created a simple consumer class which simply prints created random numbers to console. Consumer class also uses C# Event for Dequeueing random number matrices from CopulaQueue. Needless to say, this (Consumer) is the part of our program, where we should be utilizing all correlated random numbers created by the Producer.
On design side, this program is closely following the program presented in the blog posting referred above. Again, the beef in this design is on its flexibility to allow any new implementations for Random generator and Copula model. Moreover, our example program is using C# Framework Parallel class method Parallel.ForEach, found under System.Threading.Tasks namespace. Example program creates four producers and consumers (both into List data structure) and using multi-threading (Parallel.ForEach) when processing correlated random numbers into/from CopulaQueue.
![]()
![]()

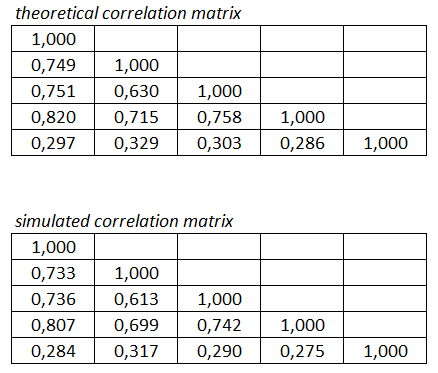

As we can see in the table, multi-threading is nicely reducing processing time, but in a non-linear fashion. Next, I printed out one batch of correlated random numbers (1000000x5 matrix) into text file and compared theoretical and simulated correlation in Excel. Results are reported in the table below. We can see, that simulated correlation is in line with theoretical correlation (enough, IMHO).
![]()
For me personally, the following two books are standing in their own class. Ben and Joseph Albahari C# in a nutshell is presenting pretty much everything one has to know (and a lot more) about C# and especially on .NET framework. Very nice thing is also, that Albahari brothers have been kindly offering a free chapter on multi-threading from this book on their website. Daniel Duffy and Andrea Germani C# for financial markets is presenting how to apply C# in financial programs. There are a lot of extremely useful examples on multi-threaded programs, especially on using multi-threading in Monte Carlo applications and the general usage of Producer-Consumer pattern, when using multi-threading.
PRODUCER-CONSUMER
In this simple example program, Producer-Consumer Pattern has been used. CopulaQueue class is nothing more, than just a wrapper for thread-safe ConcurrentQueue data structure. More specifically, the part of the program which actually creates all correlated random numbers into CopulaQueue, is the Producer. In the program, concrete CopulaEngine implementation class takes concrete RandomGenerator implementation class and correlation matrix as its input parameters. Concrete CopulaEngine implementation class then creates correlated random numbers and uses C# Event for sending created random number matrices to CopulaQueue. Another part of the program is the Consumer. Here, I have created a simple consumer class which simply prints created random numbers to console. Consumer class also uses C# Event for Dequeueing random number matrices from CopulaQueue. Needless to say, this (Consumer) is the part of our program, where we should be utilizing all correlated random numbers created by the Producer.
On design side, this program is closely following the program presented in the blog posting referred above. Again, the beef in this design is on its flexibility to allow any new implementations for Random generator and Copula model. Moreover, our example program is using C# Framework Parallel class method Parallel.ForEach, found under System.Threading.Tasks namespace. Example program creates four producers and consumers (both into List data structure) and using multi-threading (Parallel.ForEach) when processing correlated random numbers into/from CopulaQueue.
C# PROGRAM
In order to make everything as smooth as possible for the program replication, I have been writing all required classes in the same file. Just create a new console application and copy-paste the following program into a new .cs file.using System;
using System.Diagnostics;
using System.Linq;
using System.Collections.Generic;
using System.Threading.Tasks;
using System.Collections.Concurrent;
//
namespace MultithreadingCopula
{
// public delegate methods needed for sending and receiving matrix data
publicdelegatevoid MatrixSender(double[,] matrix);
publicdelegatedouble[,] MatrixReceiver();
// ********************************************************************
//
// the main program
classProgram
{
staticvoid Main(string[] args)
{
try
{
// start timer
Stopwatch timer = new Stopwatch();
timer.Start();
//
// PRODUCER PART
// create copula implementation, correlation matrix data and list of copula engines
CopulaQueue copulaQueue = new CopulaQueue();
double[,] correlationMatrix = createCorrelationMatrix();
List<CopulaEngine> engines = new List<CopulaEngine>();
int nEngines = 4;
int nRandomArrays = 25000;
for (int i = 0; i < nEngines; i++)
{
engines.Add(new GaussianCopula(nRandomArrays, correlationMatrix, new CSharpRandom()));
((GaussianCopula)engines[i]).SendMatrix += copulaQueue.Enqueue;
}
// process all copula engines (producers) in parallel
Parallel.ForEach(engines, engine => engine.Process());
//
// CONSUMER PART
// create list of consumers
List<Consumer> consumers = new List<Consumer>();
int nConsumers = nEngines;
for (int i = 0; i < nConsumers; i++)
{
consumers.Add(new Consumer(nRandomArrays, "consumer_" + (i + 1).ToString()));
consumers[i].ReceiveMatrix += copulaQueue.Dequeue;
}
// process all consumers in parallel
Parallel.ForEach(consumers, consumer => consumer.Process());
//
// stop timer, print elapsed time to console
timer.Stop();
Console.WriteLine("{0} {1}", "time elapsed", timer.Elapsed.TotalSeconds.ToString());
}
catch (AggregateException e)
{
Console.WriteLine(e.Message.ToString());
}
}
// hard-coded data for correlation matrix
staticdouble[,] createCorrelationMatrix()
{
double[,] correlation = newdouble[5, 5];
correlation[0, 0] = 1.0; correlation[0, 1] = 0.748534249620189;
correlation[0, 2] = 0.751; correlation[0, 3] = 0.819807151586399;
correlation[0, 4] = 0.296516443152486; correlation[1, 0] = 0.748534249620189;
correlation[1, 1] = 1.0; correlation[1, 2] = 0.630062355599386;
correlation[1, 3] = 0.715491543000545; correlation[1, 4] = 0.329358787086333;
correlation[2, 0] = 0.751; correlation[2, 1] = 0.630062355599386;
correlation[2, 2] = 1.0; correlation[2, 3] = 0.758158276137995;
correlation[2, 4] = 0.302715778081627; correlation[3, 0] = 0.819807151586399;
correlation[3, 1] = 0.715491543000545; correlation[3, 2] = 0.758158276137995;
correlation[3, 3] = 1.0; correlation[3, 4] = 0.286336231914179;
correlation[4, 0] = 0.296516443152486; correlation[4, 1] = 0.329358787086333;
correlation[4, 2] = 0.302715778081627; correlation[4, 3] = 0.286336231914179;
correlation[4, 4] = 1.0;
return correlation;
}
}
// ********************************************************************
//
// consumer class for correlated random numbers
publicclassConsumer
{
publicevent MatrixReceiver ReceiveMatrix;
publicstring ID;
privateint n;
//
public Consumer(int n, string ID) { this.n = n; this.ID = ID; }
publicvoid Process()
{
for (int i = 0; i < n; i++)
{
// get correlated 1xM random matrix from CopulaQueue and print it to console
double[,] matrix = ReceiveMatrix();
Console.WriteLine("{0} {1} {2} {3} {4} {5}", this.ID, Math.Round(matrix[0, 0], 4),
Math.Round(matrix[0, 1], 4), Math.Round(matrix[0, 2], 4),
Math.Round(matrix[0, 3], 4), Math.Round(matrix[0, 4], 4));
//
}
}
}
// ********************************************************************
//
// abstract base class for all uniform random generators
publicabstractclassRandomGenerator
{
publicabstractdouble GetUniformRandom();
}
// ********************************************************************
//
// uniform random generator implementation by using CSharp Random class
publicclassCSharpRandom : RandomGenerator
{
private Random generator;
//
public CSharpRandom()
{
// using unique GUID hashcode as a seed
generator = new Random(Guid.NewGuid().GetHashCode());
}
publicoverridedouble GetUniformRandom()
{
// Random.NextDouble method returns a double greater than or equal to 0.0
// and less than 1.0. Built-in checking procedure prevents out-of-bounds random
// number to be re-distributed further to CopulaEngine implementation.
double rand = 0.0;
while (true)
{
rand = generator.NextDouble();
if (rand > 0.0) break;
}
return rand;
}
}
// ********************************************************************
//
// abstract base class for all specific copula implementations
publicabstractclassCopulaEngine
{
// Uniform random generator and correlation matrix are hosted in this abstract base class.
// Concrete classes are providing algorithm implementation for a specific copula
// and event mechanism for sending created correlated random numbers matrix data to CopulaQueue class.
protected RandomGenerator generator;
protecteddouble[,] correlation;
//
public CopulaEngine(double[,] correlation, RandomGenerator generator)
{
this.correlation = correlation;
this.generator = generator;
}
publicabstractvoid Process();
}
// ********************************************************************
//
// concrete implementation for gaussian copula
publicclassGaussianCopula : CopulaEngine
{
publicevent MatrixSender SendMatrix;
privatedouble[,] normalRandomMatrix;
privatedouble[,] choleskyMatrix;
privatedouble[,] correlatedNormalRandomMatrix;
privatedouble[,] correlatedUniformRandomMatrix;
privateint rows;
privateint cols;
//
public GaussianCopula(int n, double[,] correlation, RandomGenerator generator)
: base(correlation, generator)
{
this.cols = base.correlation.GetUpperBound(0) + 1; // M, number of variables
this.rows = n; // N, number of 1xM matrices
}
publicoverridevoid Process()
{
// NxM matrix containing of uniformly distributed correlated random variables are calculated
// as a sequence of specific matrix operations
createNormalRandomMatrix();
createCholeskyMatrix();
correlatedNormalRandomMatrix = MatrixTools.Transpose(MatrixTools.Multiplication(choleskyMatrix, MatrixTools.Transpose(normalRandomMatrix)));
createCorrelatedUniformRandomMatrix();
}
privatevoid createNormalRandomMatrix()
{
// create NxM matrix consisting of normally distributed independent random variables
normalRandomMatrix = newdouble[rows, cols];
for (int i = 0; i < rows; i++)
{
for (int j = 0; j < cols; j++)
{
normalRandomMatrix[i, j] = StatTools.NormSInv(base.generator.GetUniformRandom());
}
}
}
privatevoid createCholeskyMatrix()
{
// create lower-triangular NxM cholesky decomposition matrix
choleskyMatrix = newdouble[cols, cols];
double s = 0.0;
//
for (int j = 1; j <= cols; j++)
{
s = 0.0;
for (int k = 1; k <= (j - 1); k++)
{
s += Math.Pow(choleskyMatrix[j - 1, k - 1], 2.0);
}
choleskyMatrix[j - 1, j - 1] = base.correlation[j - 1, j - 1] - s;
if (choleskyMatrix[j - 1, j - 1] <= 0.0) break;
choleskyMatrix[j - 1, j - 1] = Math.Sqrt(choleskyMatrix[j - 1, j - 1]);
//
for (int i = j + 1; i <= cols; i++)
{
s = 0.0;
for (int k = 1; k <= (j - 1); k++)
{
s += (choleskyMatrix[i - 1, k - 1] * choleskyMatrix[j - 1, k - 1]);
}
choleskyMatrix[i - 1, j - 1] = (base.correlation[i - 1, j - 1] - s) / choleskyMatrix[j - 1, j - 1];
}
}
}
privatevoid createCorrelatedUniformRandomMatrix()
{
// map normally distributed numbers back to uniform plane
// process NxM matrix row by row
for (int i = 0; i < rows; i++)
{
// create a new 1xM matrix for each row and perform uniform transformation
correlatedUniformRandomMatrix = newdouble[1, cols];
for (int j = 0; j < cols; j++)
{
correlatedUniformRandomMatrix[0, j] = StatTools.NormSDist(correlatedNormalRandomMatrix[i, j]);
}
// event : send transformed 1xM matrix to CopulaQueue
this.SendMatrix(correlatedUniformRandomMatrix);
}
}
}
// ********************************************************************
//
// this is technically just a wrapper class for ConcurrentQueue data structure
publicclassCopulaQueue
{
private ConcurrentQueue<double[,]> queue;
public CopulaQueue()
{
queue = new ConcurrentQueue<double[,]>();
}
publicvoid Enqueue(double[,] matrix)
{
// insert a matrix into data structure
queue.Enqueue(matrix);
}
publicdouble[,] Dequeue()
{
// remove a matrix from data structure
double[,] matrix = null;
bool hasValue = false;
while (!hasValue) hasValue = queue.TryDequeue(out matrix);
return matrix;
}
}
// ********************************************************************
//
// collection of methods for different types of statistical calculations
publicstaticclassStatTools
{
// rational approximation for the inverse of standard normal cumulative distribution.
// the distribution has a mean of zero and a standard deviation of one.
// source : Peter Acklam web page home.online.no/~pjacklam/notes/invnorm/
publicstaticdouble NormSInv(double x)
{
constdouble a1 = -39.6968302866538; constdouble a2 = 220.946098424521;
constdouble a3 = -275.928510446969; constdouble a4 = 138.357751867269;
constdouble a5 = -30.6647980661472; constdouble a6 = 2.50662827745924;
//
constdouble b1 = -54.4760987982241; constdouble b2 = 161.585836858041;
constdouble b3 = -155.698979859887; constdouble b4 = 66.8013118877197;
constdouble b5 = -13.2806815528857;
//
constdouble c1 = -7.78489400243029E-03; constdouble c2 = -0.322396458041136;
constdouble c3 = -2.40075827716184; constdouble c4 = -2.54973253934373;
constdouble c5 = 4.37466414146497; constdouble c6 = 2.93816398269878;
//
constdouble d1 = 7.78469570904146E-03; constdouble d2 = 0.32246712907004;
constdouble d3 = 2.445134137143; constdouble d4 = 3.75440866190742;
//
constdouble p_low = 0.02425; constdouble p_high = 1.0 - p_low;
double q = 0.0; double r = 0.0; double c = 0.0;
//
if ((x > 0.0) && (x < 1.0))
{
if (x < p_low)
{
// rational approximation for lower region
q = Math.Sqrt(-2.0 * Math.Log(x));
c = (((((c1 * q + c2) * q + c3) * q + c4) * q + c5) * q + c6) / ((((d1 * q + d2) * q + d3) * q + d4) * q + 1);
}
if ((x >= p_low) && (x <= p_high))
{
// rational approximation for middle region
q = x - 0.5; r = q * q;
c = (((((a1 * r + a2) * r + a3) * r + a4) * r + a5) * r + a6) * q / (((((b1 * r + b2) * r + b3) * r + b4) * r + b5) * r + 1);
}
if (x > p_high)
{
// rational approximation for upper region
q = Math.Sqrt(-2 * Math.Log(1 - x));
c = -(((((c1 * q + c2) * q + c3) * q + c4) * q + c5) * q + c6) / ((((d1 * q + d2) * q + d3) * q + d4) * q + 1);
}
}
else
{
// throw if given x value is out of bounds (less or equal to 0.0, greater or equal to 1.0)
thrownew Exception("input parameter out of bounds");
}
return c;
}
publicstaticdouble NormSDist(double x)
{
// returns the standard normal cumulative distribution function.
// the distribution has a mean of zero and a standard deviation of one.
double sign = 1.0;
if (x < 0) sign = -1.0;
return 0.5 * (1.0 + sign * errorFunction(Math.Abs(x) / Math.Sqrt(2.0)));
}
privatestaticdouble errorFunction(double x)
{
// uses Hohner's method for improved efficiency.
constdouble a1 = 0.254829592; constdouble a2 = -0.284496736;
constdouble a3 = 1.421413741; constdouble a4 = -1.453152027;
constdouble a5 = 1.061405429; constdouble a6 = 0.3275911;
x = Math.Abs(x); double t = 1 / (1 + a6 * x);
return 1 - ((((((a5 * t + a4) * t) + a3) * t + a2) * t) + a1) * t * Math.Exp(-1 * x * x);
}
}
// ********************************************************************
//
// collection of methods for different types of matrix operations
publicstaticclassMatrixTools
{
publicstaticdouble[,] Transpose(double[,] matrix)
{
// method for transposing matrix
double[,] result = newdouble[matrix.GetUpperBound(1) + 1, matrix.GetUpperBound(0) + 1];
//
for (int i = 0; i < matrix.GetUpperBound(0) + 1; i++)
{
for (int j = 0; j < matrix.GetUpperBound(1) + 1; j++)
{
result[j, i] = matrix[i, j];
}
}
return result;
}
publicstaticdouble[,] Multiplication(double[,] matrix1, double[,] matrix2)
{
// method for matrix multiplication
double[,] result = newdouble[matrix1.GetUpperBound(0) + 1, matrix2.GetUpperBound(1) + 1];
double v = 0.0;
//
for (int i = 0; i < matrix1.GetUpperBound(0) + 1; i++)
{
for (int j = 0; j < matrix2.GetUpperBound(1) + 1; j++)
{
v = 0.0;
for (int k = 0; k < matrix1.GetUpperBound(1) + 1; k++)
{
v += matrix1[i, k] * matrix2[k, j];
}
result[i, j] = v;
}
}
return result;
}
}
}
TEST RUN
When running the program, I get the following console printout. The printout shows, how our four consumers used in the example program are Dequeueing correlated 1x5 random matrices from CopulaQueue in parallel.
EFFICIENCY AND CORRELATION
One million rows for 5x5 correlation matrix was processed 100 times, when testing efficiency of the producer part of the program. More specifically, four producers (CopulaEngine) are creating 1x5 matrices, consisting of five correlated uniformly distributed random numbers one by one and then sending these matrices to ConcurrentQueue wrapped in CopulaQueue class in parallel. Each of the four producers are then performing this operation 250 thousand times. Finally, the whole operation was repeated 1 hundred times and time elapsed for each repetition was saved for further analysis. The results of this experiment are reported in the table below.
As we can see in the table, multi-threading is nicely reducing processing time, but in a non-linear fashion. Next, I printed out one batch of correlated random numbers (1000000x5 matrix) into text file and compared theoretical and simulated correlation in Excel. Results are reported in the table below. We can see, that simulated correlation is in line with theoretical correlation (enough, IMHO).
READING REFERENCES
For me personally, the following two books are standing in their own class. Ben and Joseph Albahari C# in a nutshell is presenting pretty much everything one has to know (and a lot more) about C# and especially on .NET framework. Very nice thing is also, that Albahari brothers have been kindly offering a free chapter on multi-threading from this book on their website. Daniel Duffy and Andrea Germani C# for financial markets is presenting how to apply C# in financial programs. There are a lot of extremely useful examples on multi-threaded programs, especially on using multi-threading in Monte Carlo applications and the general usage of Producer-Consumer pattern, when using multi-threading.
Again, Big thanks for reading my blog and Happy and Better New Year 2015 for everybody.
-Mike
-Mike
